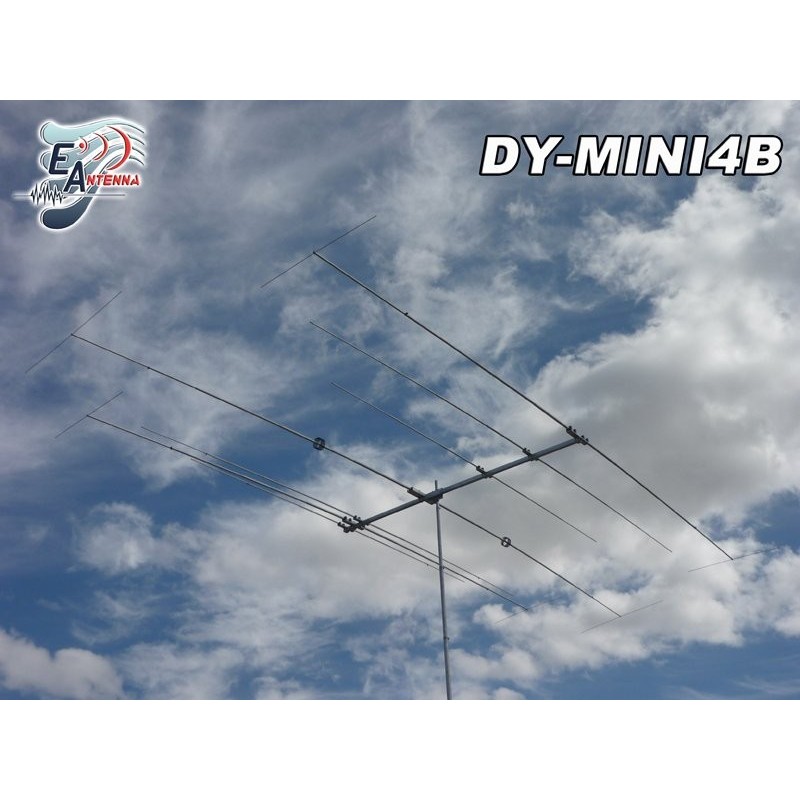

EAntenna DY-MINI4B 7 EL. 10/15/20/40m.

SPECIFICATION

40m

20m

15m

10m

Element per Band:

1

2

2

2

Frequency Range:

7,0~7,3

14,0~14,35

21,0~21,45

28,0~29,7 MHz.

Gain: (dBi)

2,05

6,6

6,8

7,0 dBi *

Gain: (dBi)

7,55

12,1

12,3

12,5 dBi **

F/B:

0

>15 dB

>15 dB

>15 dB

SWR:

1,1?~2,0? (150 KHz.)

1,1?~1,6?

1,1?~1,7?

1,1? ~ 1,8?

Impedance:

50 Ohm

Max. Power:

10 kW. ***

Boom Length:

3,82m / 12,5'

Turning Radius:

4,95m / 16,2'

Wind Survival:

≥ 160kmh / ≥ 100mph

Weight:

32,3 Kg / 71,2 Pounds

* Gain dBi (Gain over isotropic in free space).
** Gain dBi at 20m above ground
*** 3 kW Balun included, there are options of 5 and 10 kW.
