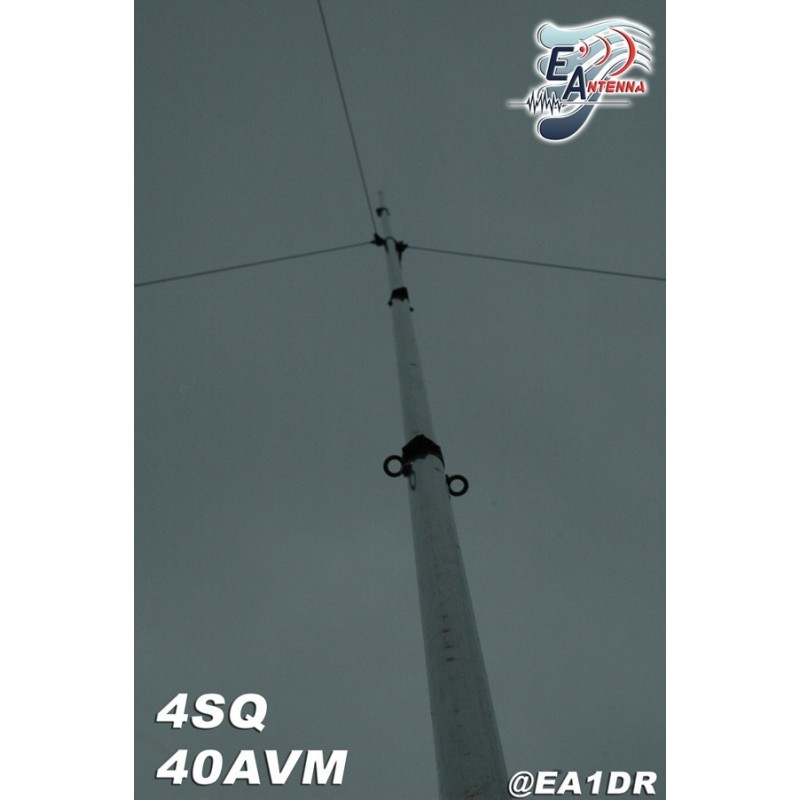

EANTENNA 40AVM ANTENNA VERTICALE 7 MHZ
INFORMAZIONI
per L'ACQUISTO
Specifications 40AVM
- All sections of the antenna is 2 mm for better wind resistance.
- Board to mast, 300x100mm with 6mm thick with U-bolts of M8 to the plate to the mast.
- Simple and quick, because the pieces have a unique position.
- Antenna very solid construction, and with a weight very acceptable.
SPECIFICATION | EAntenna 40AVM |
---|---|
Frequency Range: | 7.0 ~ 7.3 MHz |
SWR: | 1,1:1~1,6:1 |
Impedance: | 50 Ohm |
Max. Power: | 5 kW.* |
Height: | 10.1 m / 33.1' |
Sections: | 6 |
Diameters: | 50/45/40/35/30/25 mm |
Wind Survival: | 160kmh / ≥ 100mph** |
Weight: | 9.0 kg / 19.8 Pounds |
* Does not include Balun, not necessary
** Wind Resistance designed with 2 points of guying
