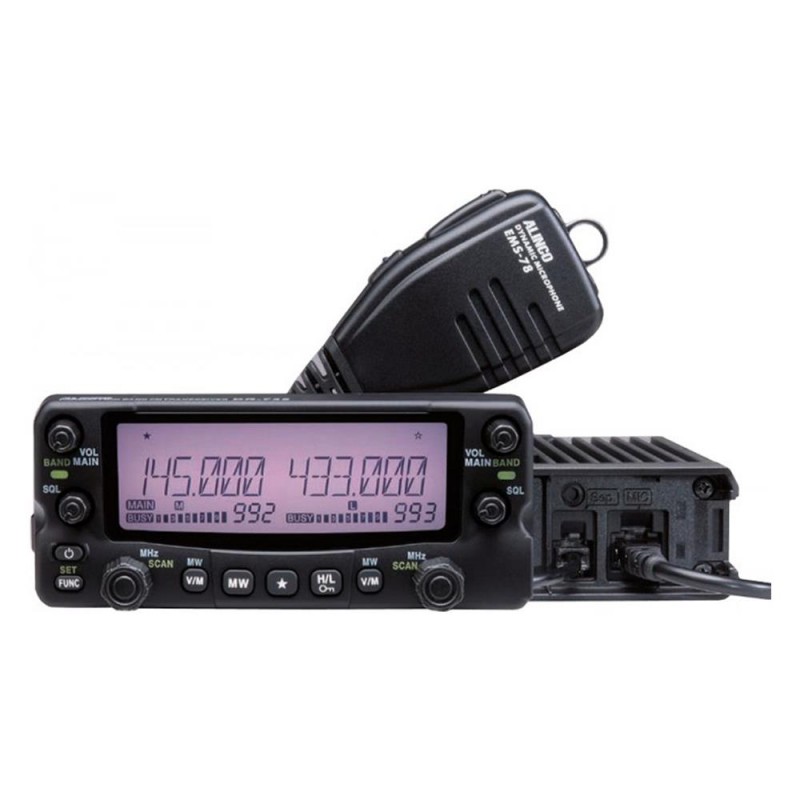

ALINCO DR-735E RICETRASMETTITORE VEICOLARE VHF/UHF 50W
INFORMAZIONI
per L'ACQUISTO
- Full-duplex receiver enables simultaneous TX/RX within 144/440MHz bands as well as V/V and U/U receiver capability.
- Features eight full RGB color LEDs enabling you to customize your display colors in the set mode.
- Fully independent frequency, audio level and squelch knobs for right and left VFOs make it seem more like operating two monoband radios rather than a dual band transceiver.
- Simply press the volume knob to select the VFO you wish to use for transmitting.
- Cross-band repeater function available on all DR-735T radios.(Be sure to observe all regulations applicable to cross-band operation.)
- Computer programmable with free software available for download at www.alinco.com
- "Set Mode" menus are divided into basic and advanced, allowing you to assign less frequently used modes such as auto power off or busy channel lockout to set and forget. That makes it easier to access the menus you use more often, such as scan mode and pager settings.
- Large heatsink and quiet fan for stability while operating
- Wide and narrow ceramic filters enable true narrow band operation
- Two speaker ports located on the back of the unit allow you to separate signals by both right and left sides or by internal or external speakers using audio from a single external source.
- Features manual shift and offset direction setting plus preset and programmable auto-repeater settings. Includes 4 tone-burst tones.
- Includes 1,000 memory channels in 10 banks, 100 right-only/100 left-only memories, 100 dual memories, 5 pairs of programmed-scan channels, and 2 call channels. All memory channels can hold output setting, tones, LCD display color selections and more.
-
Specifications Genaral Frequency range: TX: USA
VHF 144-147.995 MHz
UHF 430-449.995 MHz
TX: European
VHF 144-145.995 MHz
UHF 430-439.995 MHz
RX:
108-173.995 MHz
400.000-479.995 MHzModulation: 16K0F3E(FM)/8K50F3E(Narrow FM)/F1E(Optional digital voice)/F2D(1200bps)/A3E(RX only/AM)
NOTE: 9600bps packet is not usableChannel steps: 5, 6.25, 8.33, 10, 12.5, 15, 20, 25, 30, 50, 100KHz Memory channel: Free-programmable 1000ch / R+L 100ch each / dual 100ch / VHF CALL & UHF CALL 1ch each / 5 pairs program scan Antenna impedance: 50ohm unbalanced Frequency stability: +/- 2.5ppm Power Supply Requirement: 13.8V DC +/- 15% Negative ground Current Drain: Approx. 12A TX high / 0.6A RX max. / 0.4A RX squelched Operating temperature: -10digC to +60digC (+14digF to 140digF) Dimensions (w/o projection): 140(W) x 60(H) x 188(D) mm
5.5"(W) x 2.4"(H) x 7.4"(D)Weight: Approx. 1.3Kg (45.9oz) Transmitter Power Output: High 50W / Mid 20W / Low 5W(approx.)
Mid power freely programmable in set mode between 50 and 5WModulation system: Variable Reactance Frequency Modulation Spurious emission: Less than -60dB Maximum frequency deviation: +/- 5 KHz (FM) / +/- 2.5 KHz (NFM) Receiver Receive system: Double-conversion superheterodyne Sensitivity (-12dB SINAD): -14dBu(0.20uV) or better Intermediate frequency: VHF main : 21.7MHz/450KHZ
UHF main : 30.85MHz/455kHzSquelch: -18.0 dBu (0.1 uV) or less Selectivity: Wide FM : (-6dB)?F15kHz or less / (-50dB)?F30kHz or less
Narrow FM : (-6dB)?F9kHz or more / (-50dB)?F20kHz or lessAudio output power: 2.0 W (8 ohm, 10% distortion) Specifications subject to change without notice or obligation. Performance specification apply only to the amateur bands. Permit required for MARS use. Check regulations prior to operating full duplex in US.
DR-735E
